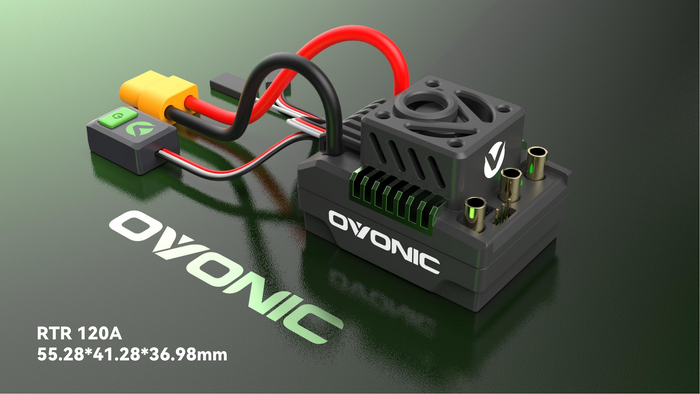

Ovonic IFlow 10BL120A ESC

IFlow 10BL120A Brushless ESC – Specifications & Adjustable Parameters

🔧 Product Overview

Model: IFlow 10BL120A
Continuous / Peak Current: 120A / 760A
Supported Motor Types:

• Sensorless brushless motor

• Sensored brushless motor (only in sensorless mode)
  Recommended Vehicles:

• 1/10 Scale Short Course Trucks, Monster Trucks, Touring Cars

Compatible Motor Specs:

• On 3S LiPo: ≤4000KV (3660 motor size)

• On 4S LiPo: ≤2600KV (4268 motor size)

Battery Support: 2S–4S LiPo
BEC Output:

• Switch-mode BEC

• Ultra-stable 6V / 7.4V output

• Continuous 5A / 8A; Peak 10A

Cooling Fan Power Supply:

• Powered by internal BEC with stable 6V/7.4V output

Dimensions / Weight:

• 55.5 (L) × 41.5 (W) × 39.0 (H) mm

• 136g

Parameter Programming:

• Xlink Multi-functional LCD Programming Box

⚙️ Adjustable Parameters

General Settings

• Running Mode:

  • Fwd/Brk

  • Fwd/Rev/Brk

  • Fwd/Rev

• Max. Reverse Force: 25%–100% (adjustable in 1% steps)

• Max. Run Force: 25%–100% (adjustable in 1% steps)

• Cutoff Voltage:

  • Disable

  • Auto (3.5V/cell)

  • 6.0V–15.2V (adjustable in 0.1V steps)

• ESC Thermal Protection: Enable / Disable

• BEC Voltage: 6.0V / 7.4V

• Motor Rotation: CW / CCW

• DEO Control: Enable / Disable

Throttle Control

• Punch Rate: 1–9 (adjustable in 1 step)

• Neutral Range: 6% / 8% / 10%

• Initial Throttle Force: 1%–15% (adjustable in 1% steps)

• Max. Brake Force: 0%–100% (adjustable in 1% steps)

• Initial Brake Force (Drag Brake): 0%–50% (adjustable in 1% steps)

• Brake Rate Control: 0–20 (adjustable in 1 step)
