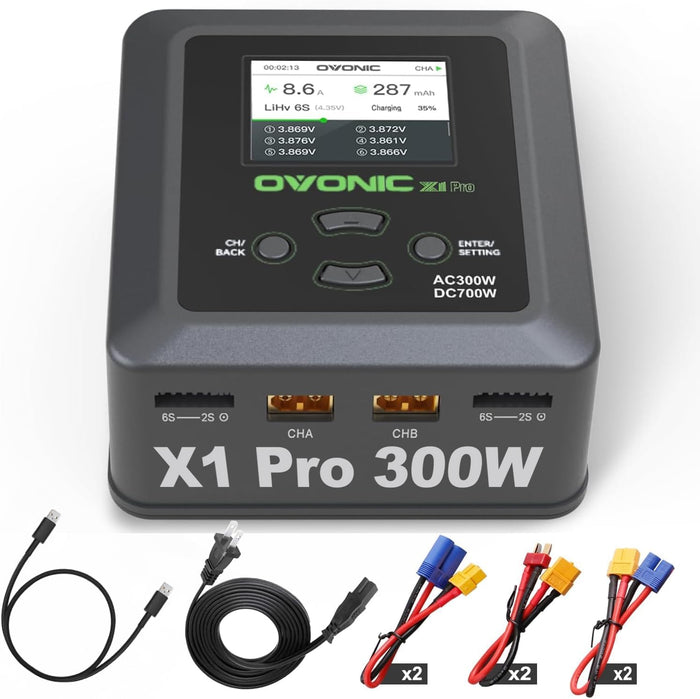

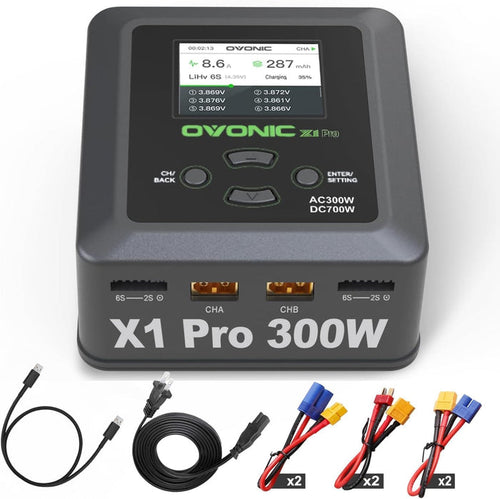

Ovonic X1 Pro Dual Channel LiPo Charger AC300W/DC700W 16A Lipo Battery Balance Charger

Product Overview

OVONIC X1 Pro is a high-power dual-channel RC LiPo charger with an innovative 2-in-1 power supply design delivering up to 300W AC and 700W DC output at 16A per channel. It’s engineered for fast, safe charging of LiPo, Li-ion, LiFe, LiHV (1-6S), and NiMH (1-16S) batteries—perfect for demanding drones, RC cars, and helicopters.

Building on the X1’s solid foundation (200W AC / 600W DC, 15A), the X1 Pro upgrades power and current to meet high-power RC charging needs with superior efficiency and reliability.

For more Ovonic X1 Pro LiPo Charger AC/DC Dual Channel 16A operate video, please click on YouTube.

Key Features

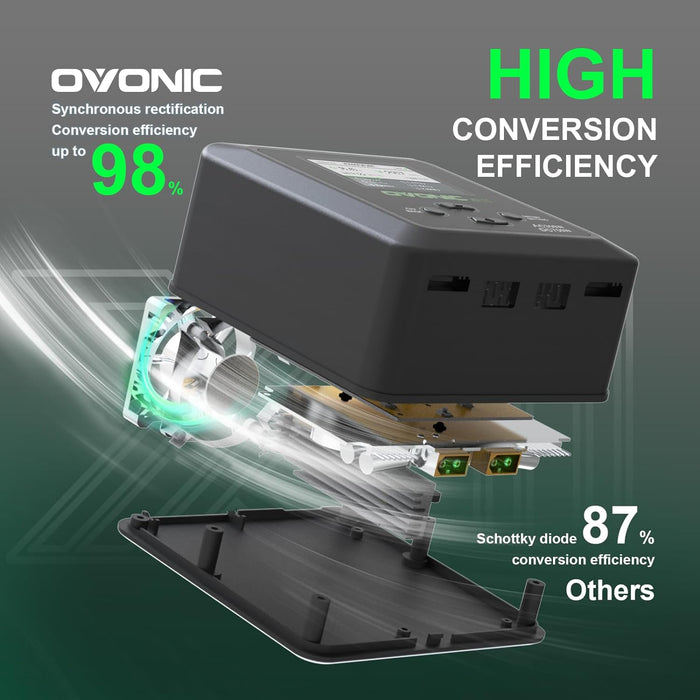

• High Power & Efficiency: Supports up to 300W AC and 700W DC combined charging power with charging current adjustable from 0.1A to 16A per channel. Uses advanced synchronous rectification technology achieving 98% conversion efficiency, significantly reducing charging time compared to standard chargers.

• Dual Independent Channels: Two fully independent channels allow simultaneous charging of different battery types or capacities, maximizing workflow efficiency.

• Wide Battery Compatibility: Compatible with popular RC battery chemistries including LiPo, Li-ion, LiFe, LiHV (1-6S), and NiMH (1-16S) batteries, covering most hobby and professional use cases.

• Multiple Smart Charging Modes: Offers Charge (0.1-16A), Discharge (0.1-3.0A), Storage, Balance (max 1.2A per cell), Extended Discharge, Digital Power, and SyncCharge modes to extend battery life and optimize performance.

• Safety & Smart Functions: Includes temperature monitoring, safety timer, capacity (mAh) cut-off, voltage deviation ±10mV, auto power-off, resistance detection (mΩ), and self-test functions for reliable and secure operation.

• User-Friendly Interface: Features a 2.4" IPS LCD screen with adjustable brightness and sound volume, providing clear status updates and easy navigation. Firmware upgrades keep the charger up to date.

• High Discharge Power: Supports up to 15W discharge power per channel (6W on main output and 9W on balance port), useful for battery maintenance and testing.

Application Examples

• FPV Drone Racing: Fast-charge multiple 4S/6S LiPo packs with AC or DC power options to maximize airtime.

• RC Car Racing: Use dual channels to charge front and rear packs simultaneously, with SyncCharge mode for balanced charging.

• Helicopter & Airplane Hobbyists: Use storage mode and discharge functions to prolong battery lifespan and maintain safety.

• Battery Health Check: Discharge and resistance detection help monitor and extend battery life.

Specification

• Display: 2.4" IPS LCD

• Channels: 2

• Input Voltage: AC 100-240V / DC 7-30V

• Output Voltage: DC 1-30V

• Charging Current: 0.1-16A (×2 channels)

• Balance Current: Max 1.2A per cell (×2 channels)

• Voltage Deviation: ±10mV (standard)

• Discharge Current: 0.1-3.0A (×2 channels)

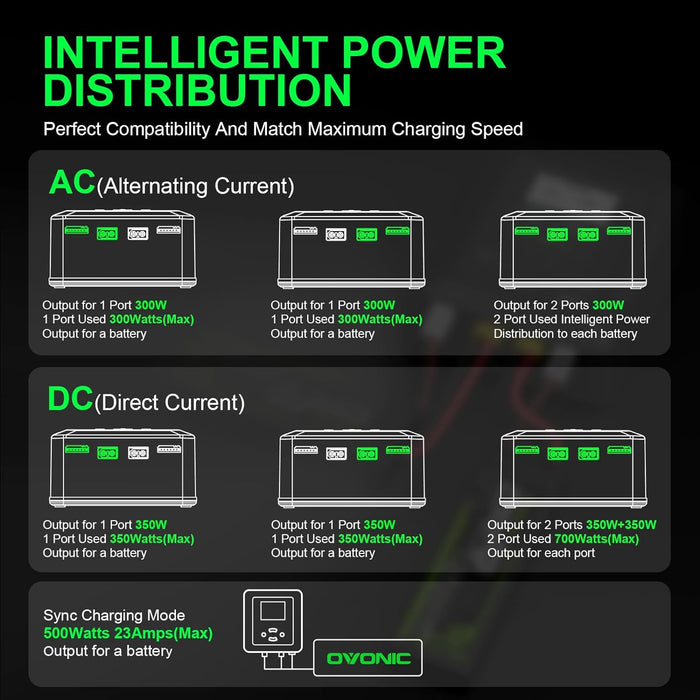

• Max Charging Power: AC 300W (combined) / DC 700W

• Max Discharging Power: 15W (×2 channels; Output port 6W each, Balance port 9W each)

• Balance Cell Count: 1-6S

• Supported Battery Types: LiPo, Li-ion, LiHV, LiFe (1-6S); NiMH (1-16S)

• Operating Temperature: 0-65°C

• DC Input Connector: XT60PW-M

• Output Connector: XT60PW-M

• Dimensions: 129 × 120 × 63 mm

• Weight: Approx. 530 g

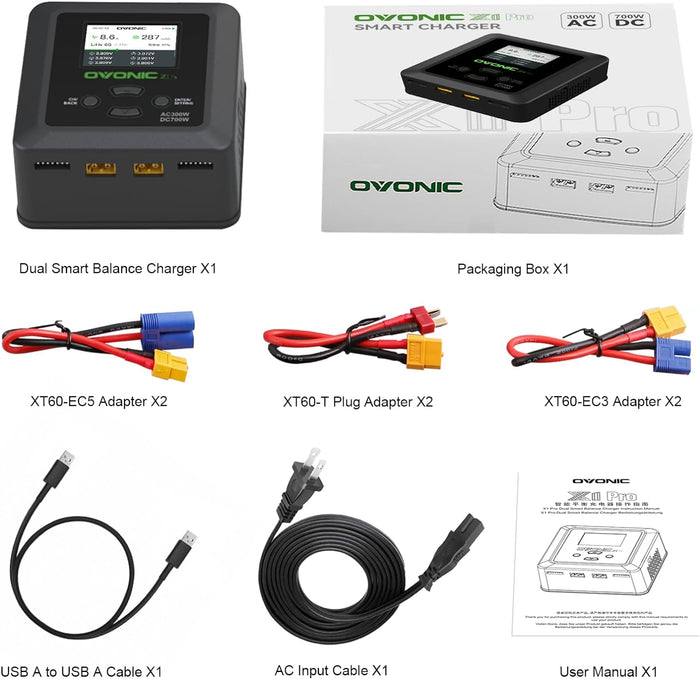

What’s in the Box?

• 1 x OVONIC X1 Pro RC Battery Balance Charger

• 1 x Packaging Box

• 1 x AC Input Cable

• 1 x USB Cable

• 2 x XT60-T Plug Adapters

• 2 x XT60-EC3 Adapters

• 2 x XT60-EC5 Adapters

• 1 x User Manual

Note: EU customers receive EU-standard plugs; US customers receive US-standard plugs.

Important Notes

• Use within specified input voltage: AC 100-240V or DC 7-30V.

• Always supervise charging/discharging for safety.

• Keep charger in ventilated space to avoid overheating.

• Firmware upgrades and user manual available here::
  OVONIC X1 Pro Firmware Download
